Top Chord Fenceline Cut Non Spliced Joints

Vertical Web to Top Chord

One Web to Top Chord

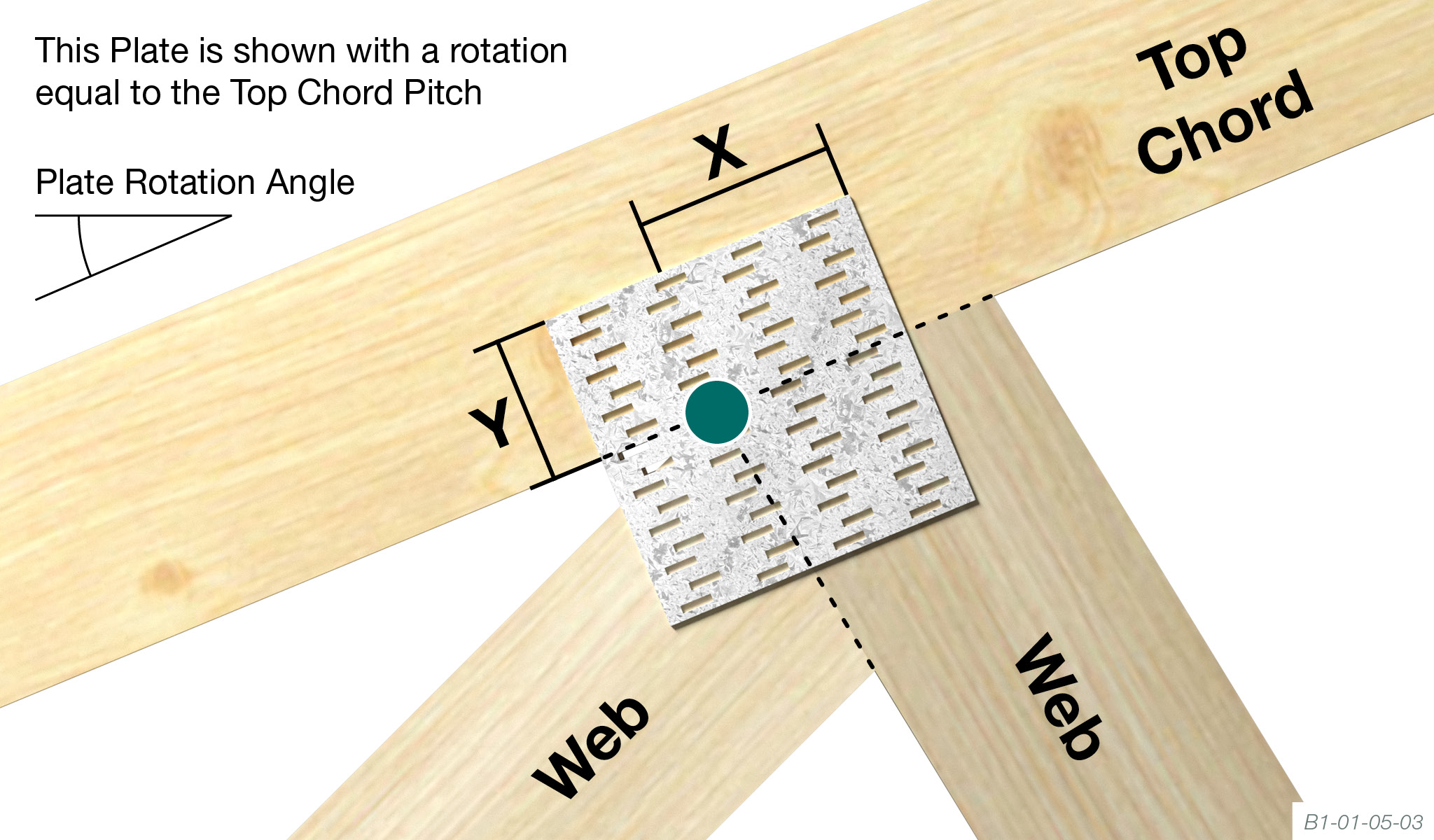

Two Webs to Top Chord

Vertical and Sloping Web to Top Chord

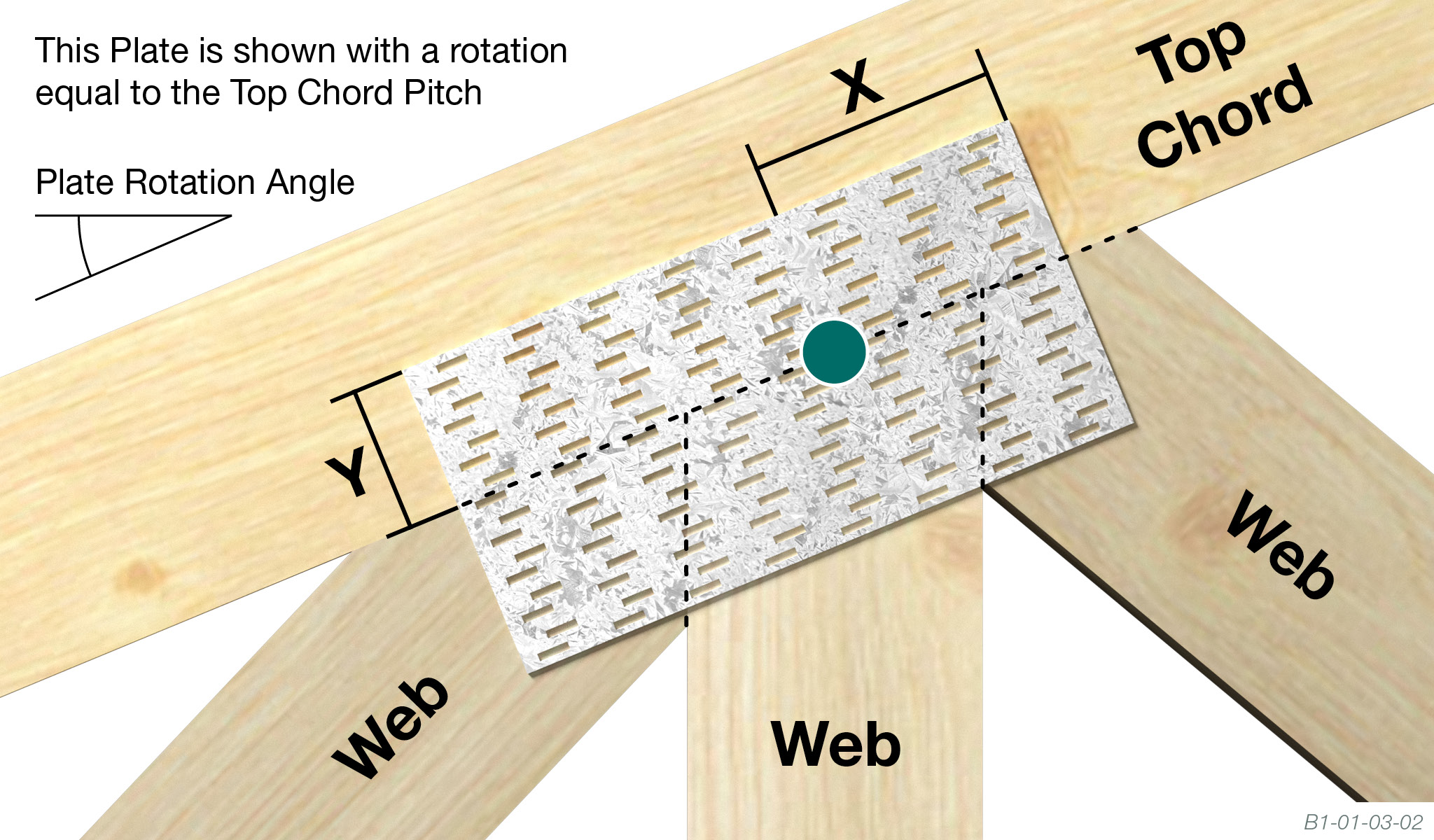

Sloping Webs

Horizontal Top Chord Fenceline Cut Non Spliced Joints

Vertical Web to Horizontal Top Chord

Two Webs to Horizontal Top Chord

Vertical and Sloping Web Horizontal Top Chord

Vertical and Two Sloping Webs to Horizontal Top Chord

Bottom Chord Fenceline Cut Non Spliced Joints

Vertical Web to Bottom Chord

One Web to Bottom Chord

Two Webs to Bottom Chord

Vertical and Sloping Web to Bottom Chord

Vertical and Two Sloping Web to Bottom Chord

● Intersection reference point

NOTES: 1. X is referred to as the measurement along the length of the plate. Y is referred to as the measurement across the width of the plate.

2. When X or Y is = then the plate shall be positioned, for the relevant direction, centrally around the point indicated. (This does not apply to some heel & truncated hip joints. Refer to diagrams).
